Part 5 of the Hacking Furbo blog series is here and in this article we'll be focusing on an area which has gotten little attention thus far: Bluetooth Low Energy (BLE).
As with Part 2, we continued to find places where Furbo’s security was already quite good. Stubborn as we are, though, we were still able to find areas that were vulnerable. We will detail how we discovered the paths to exploiting various vulnerabilities in Furbo’s implementation of BLE through the analysis of a live device, its logs, and the decompiled mobile application.
When a new device is first set up, the end-user has to connect that device to their local Wi-Fi network. Furbo handles this by connecting to the user's mobile phone, where a communication flow occurs over Bluetooth to pass the authentication details to the device. Once this is completed, the device ceases to communicate with the application over Bluetooth. Honestly, it was an area we overlooked at first because it was such a quick and seamless process.
As we dug further into the application and device however, we realized it was an area we should explore further. This interest was prompted by discussions with a colleague who had done ample research on BLE in the past—Kevin2600.
The first question we wanted to answer was simple: "Are the communications between device and mobile application encrypted?"
To do so, we leaned on adb bugreport. On an Android device with developer options enabled, a report can be generated which details all of the logging information related to the operations of the device. By default, this bugreport does not include Bluetooth communications however by enabling Bluetooth HCI Snoop Log in the Developer settings we could gain insight into these too.
So, we turned this on, ran the pairing process, and entered in the credentials of a hotspot we had set up for testing. To help us identify the password more easily we used a string we could more easily search for: “FINDMEPASSWORD”.

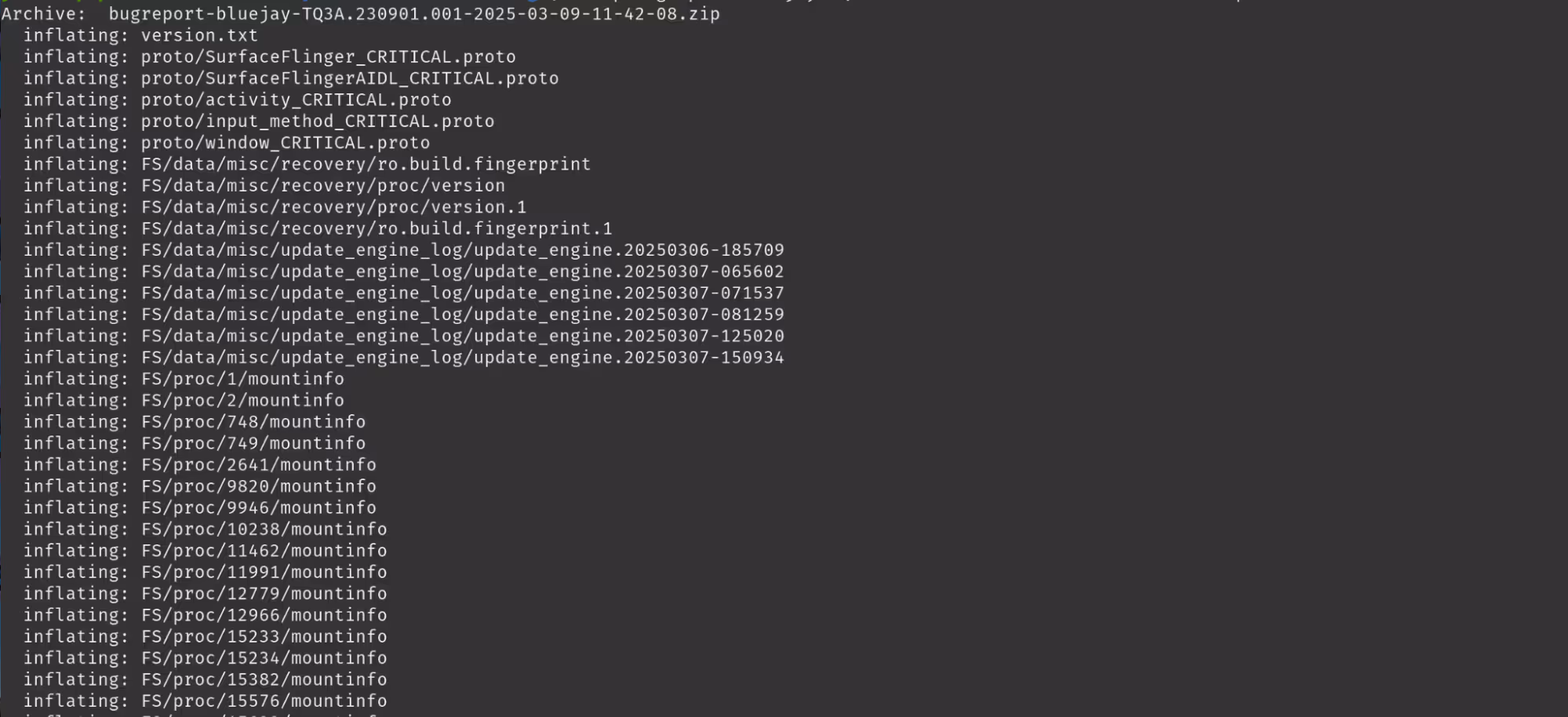

We then pulled the report with adb bugreport <filename> onto our host machine and unzipped the archive.

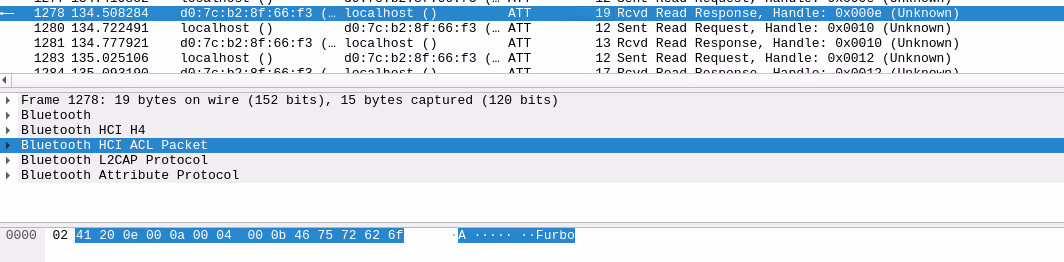

After digging up the btsnoop_hci.log file, we pulled it into WireShark where we could more easily analyze the communications. There were a ton of logs to parse, so we applied the btatt filter to reduce it some and found the first destination which was a MAC address and started from that point. This packet was our first indicator that we were focusing on the right device.

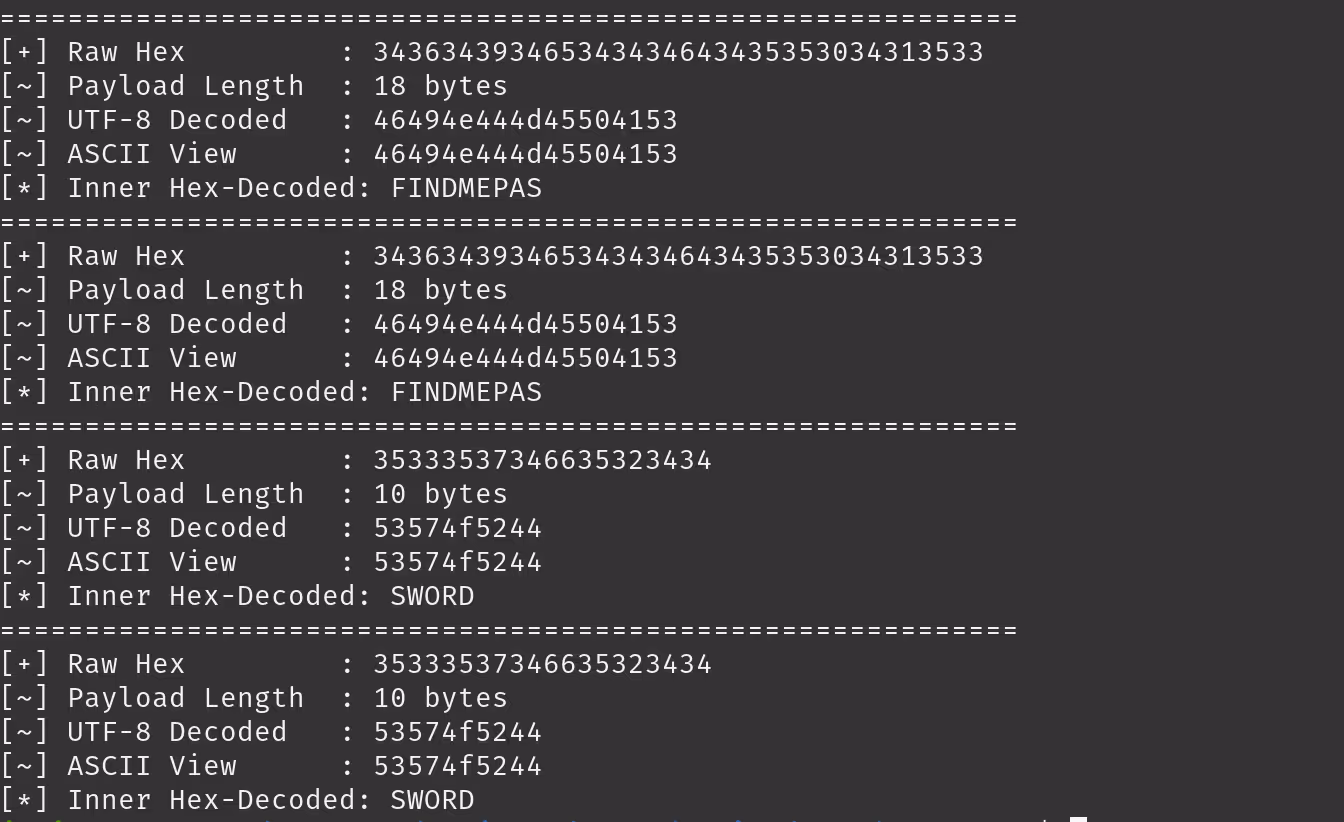

Reviewing more of the packets, we realized that much of the communications were split up across several sends, meaning it would be challenging to decipher what exactly was being sent or received. It also seemed as though that some of the data may be hex encoded based on the packets seen in Wireshark. Rather than trying to piece it all together, we grepped out any possible hex values and whipped up a Python script which would parse the log file and hopefully extract whatever data we were looking for.
And with that, we had our first BLE vulnerability. The passwords and SSIDs which were sent to a Furbo device were being communicated over BLE in an unencrypted format!
After the excitement of this first finding we decided it would be well worth investigating this interface further. Using an nrf52840 adapter, we set up the Nordic Semiconductor nRF Connect app to view the exposed GATT Characteristics and Services through a graphical interface.

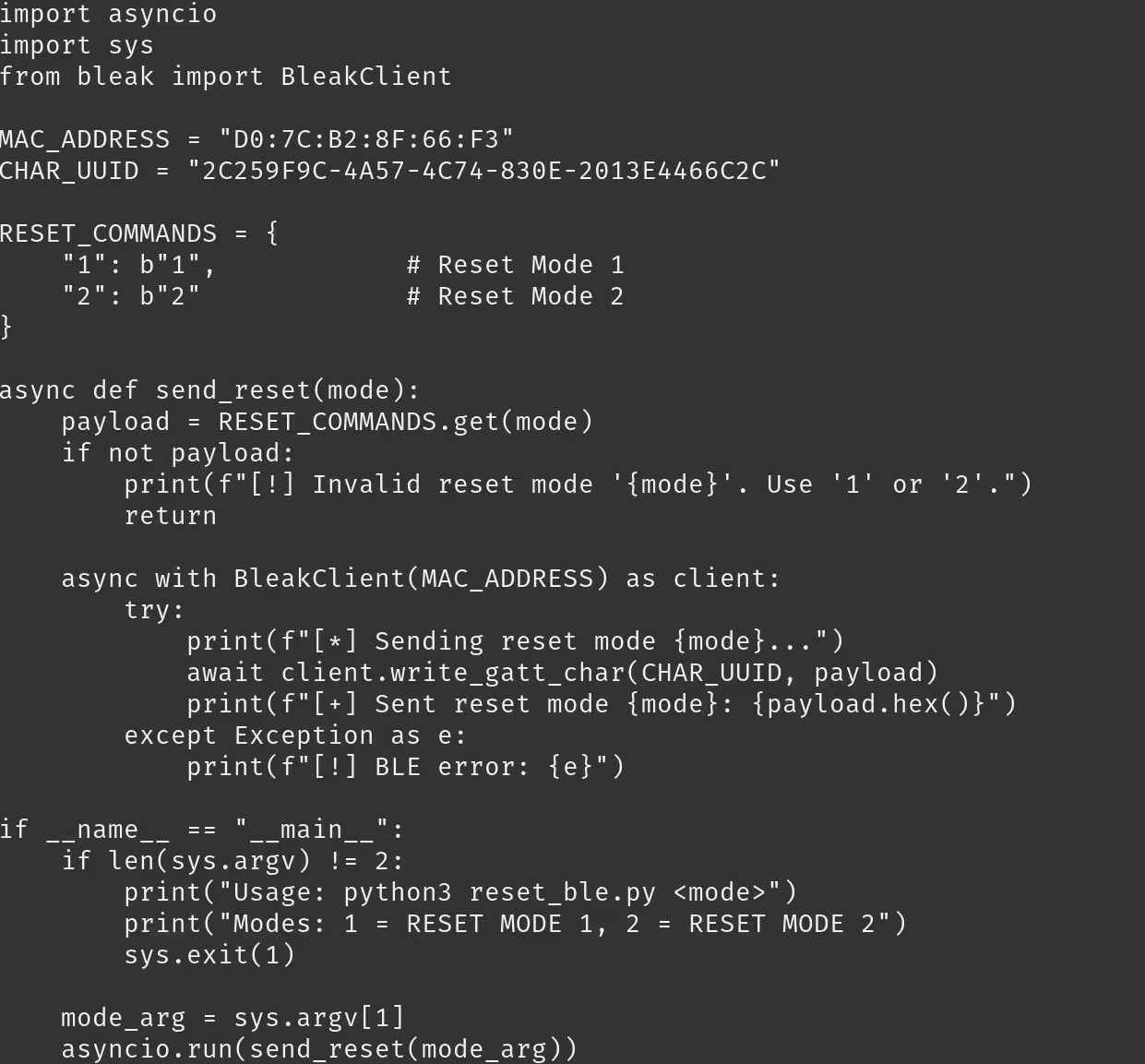

While we could write to one characteristic, the rest were simply reads which returned information about our device. Fuzzing the writable characteristic with various characters we found that sending 1 or 2 would result in either a "soft" or "hard" reset of the device—essentially allowing us to turn the device off or disconnect it from the Wi-Fi temporarily.
The "soft reset", from what we could tell, was used to change the Wi-Fi Network the device was connected to. This state was only temporary and once the device was manually rebooted, it would connect back to the original network using the saved credentials it had.
We will return to the “hard reset” shortly.
While it may seem like an annoyance at first glance, these devices are touted as security products in some of the marketing materials; meaning that this vulnerability has a slightly higher impact. If, for example, I were a bad guy breaking into someone's house, I could switch off the Furbo's video feed before entering with this vulnerability.

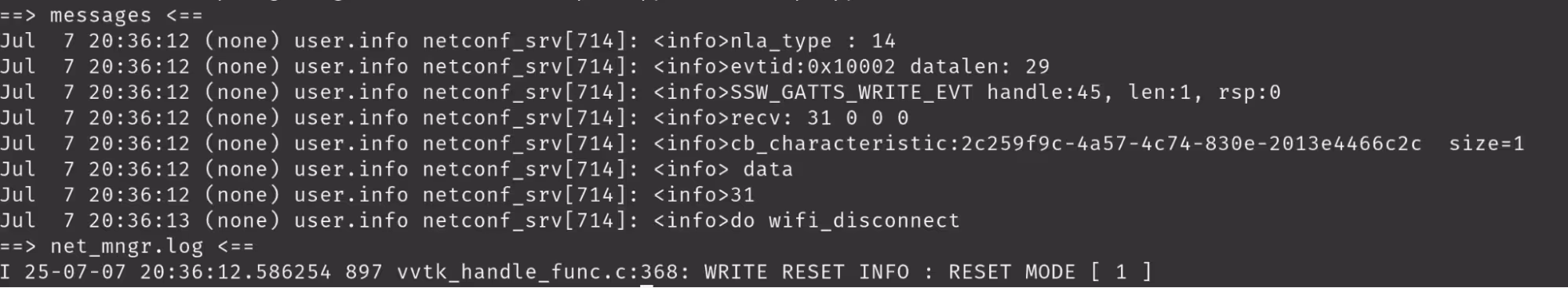

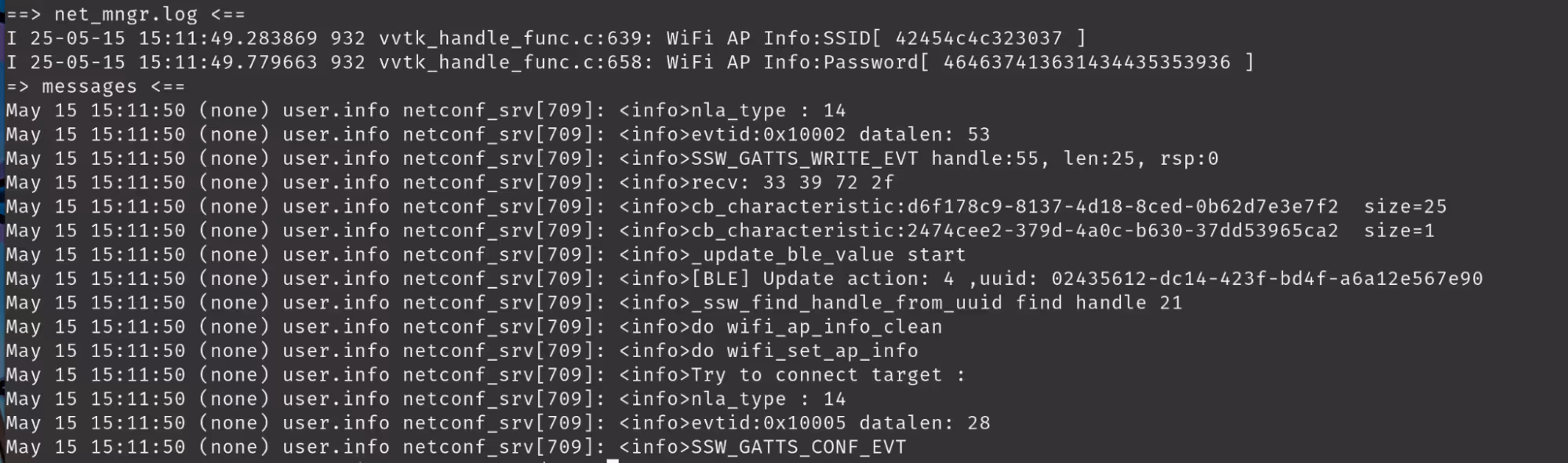

As we were toying around with the pairing process, we monitored the device logs under /tmp/log, trying to determine what was occurring at each step; it was then that we discovered there must be more GATT Characteristics than what we saw at first glance with the nRF Connect application.
In the second picture we can see the SSID and Wi-Fi password being sent in hex.
We figured that if they were being used in the communication flow, they must be referenced somewhere in the APK. Using grep, we searched for the locations of the UUIDs.

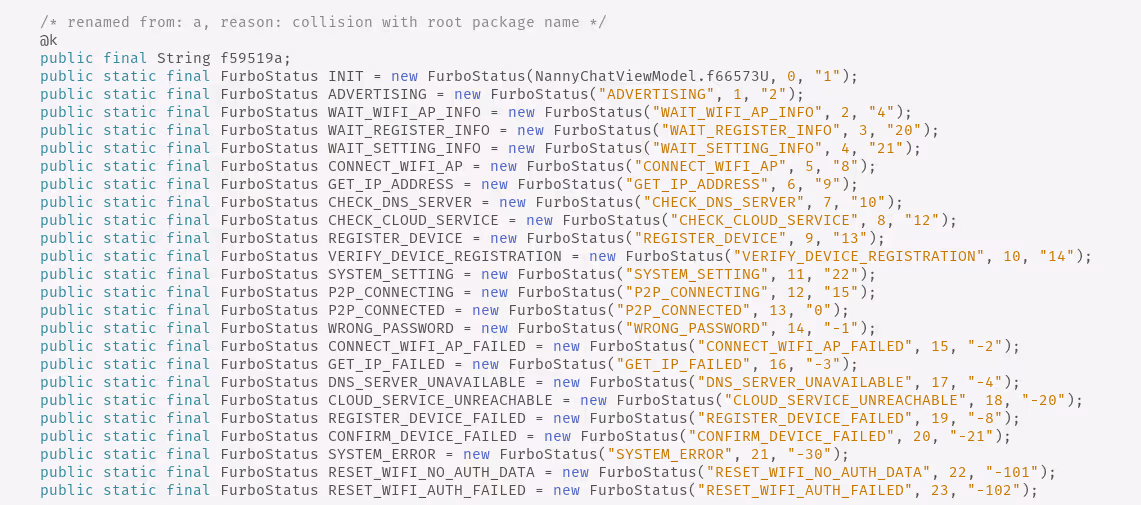

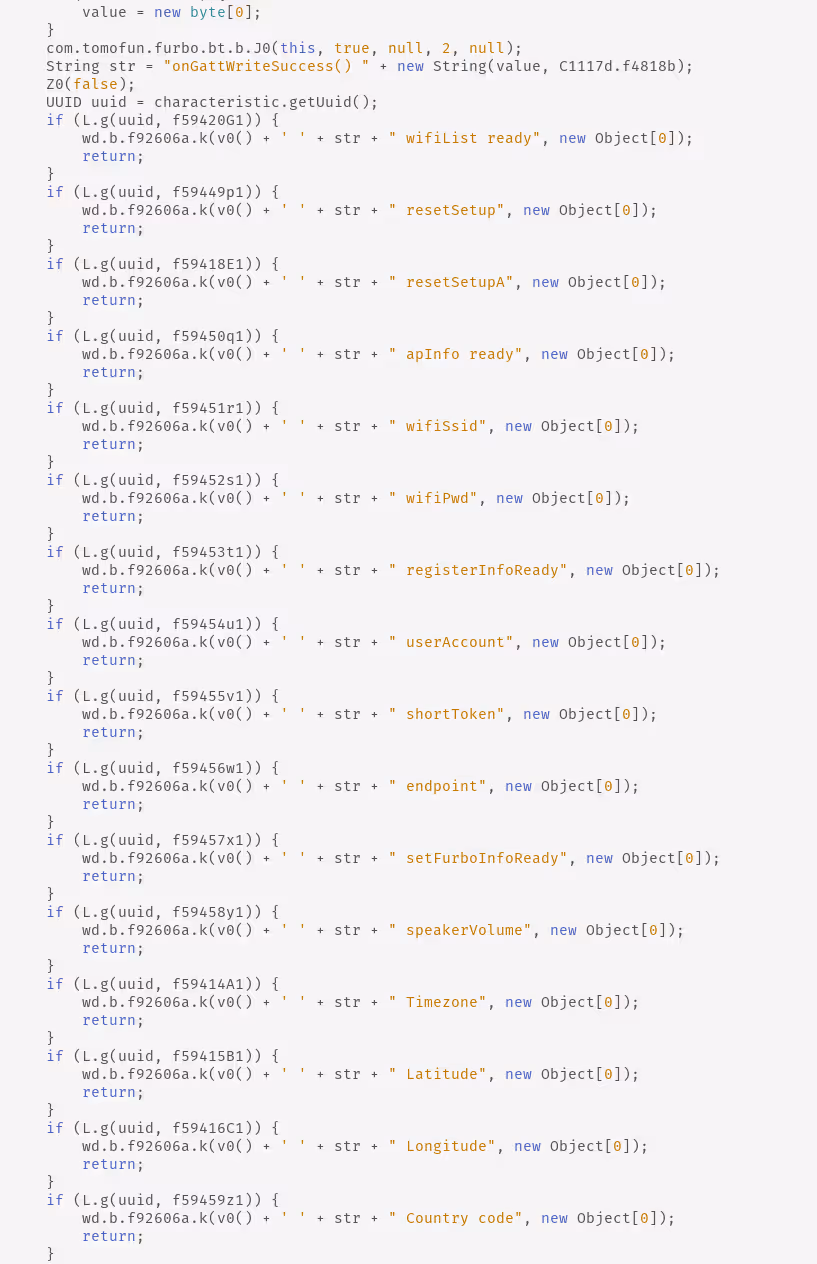

Within this file we found many more characteristics referenced, as well as operations they may be used for.

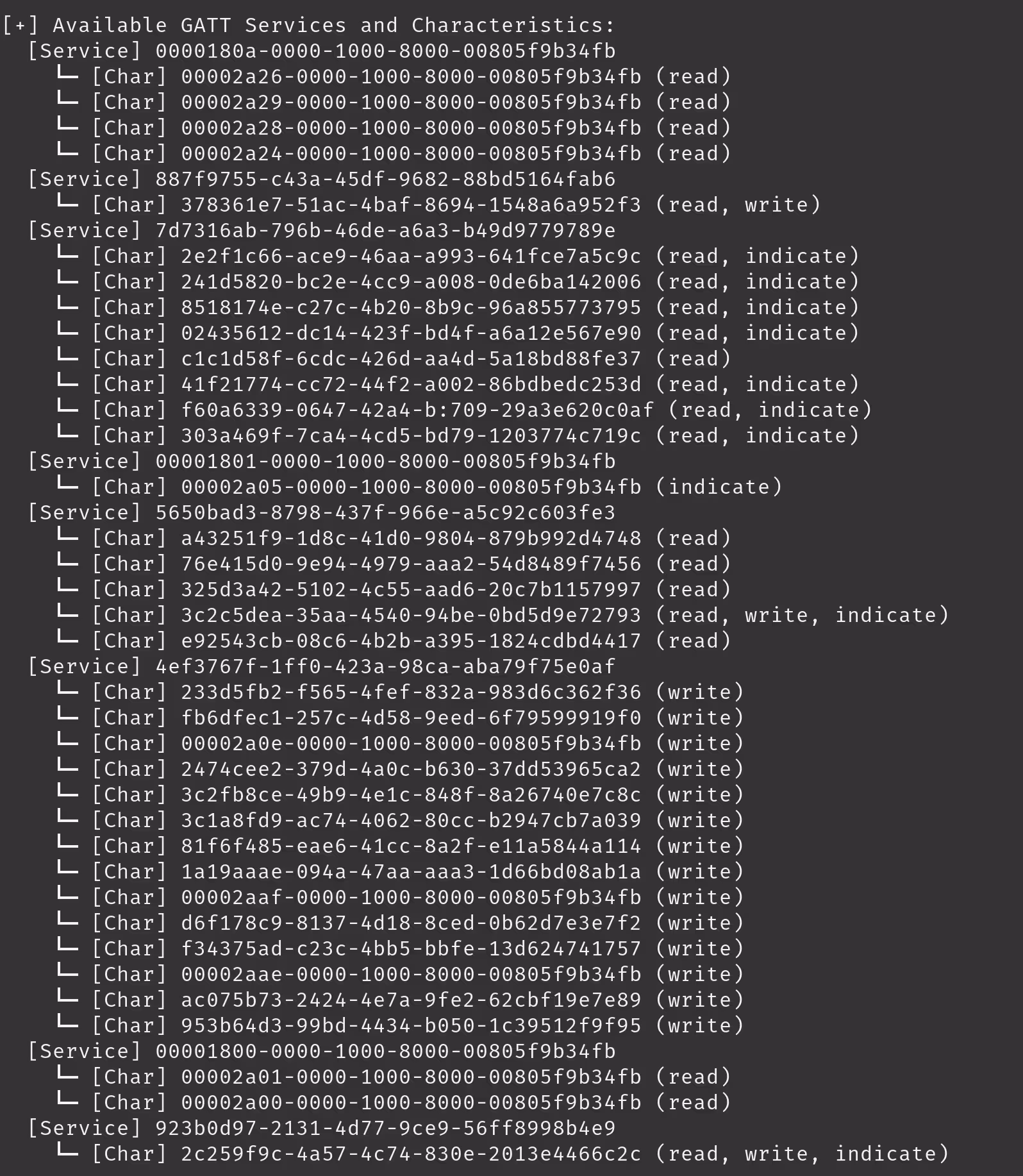

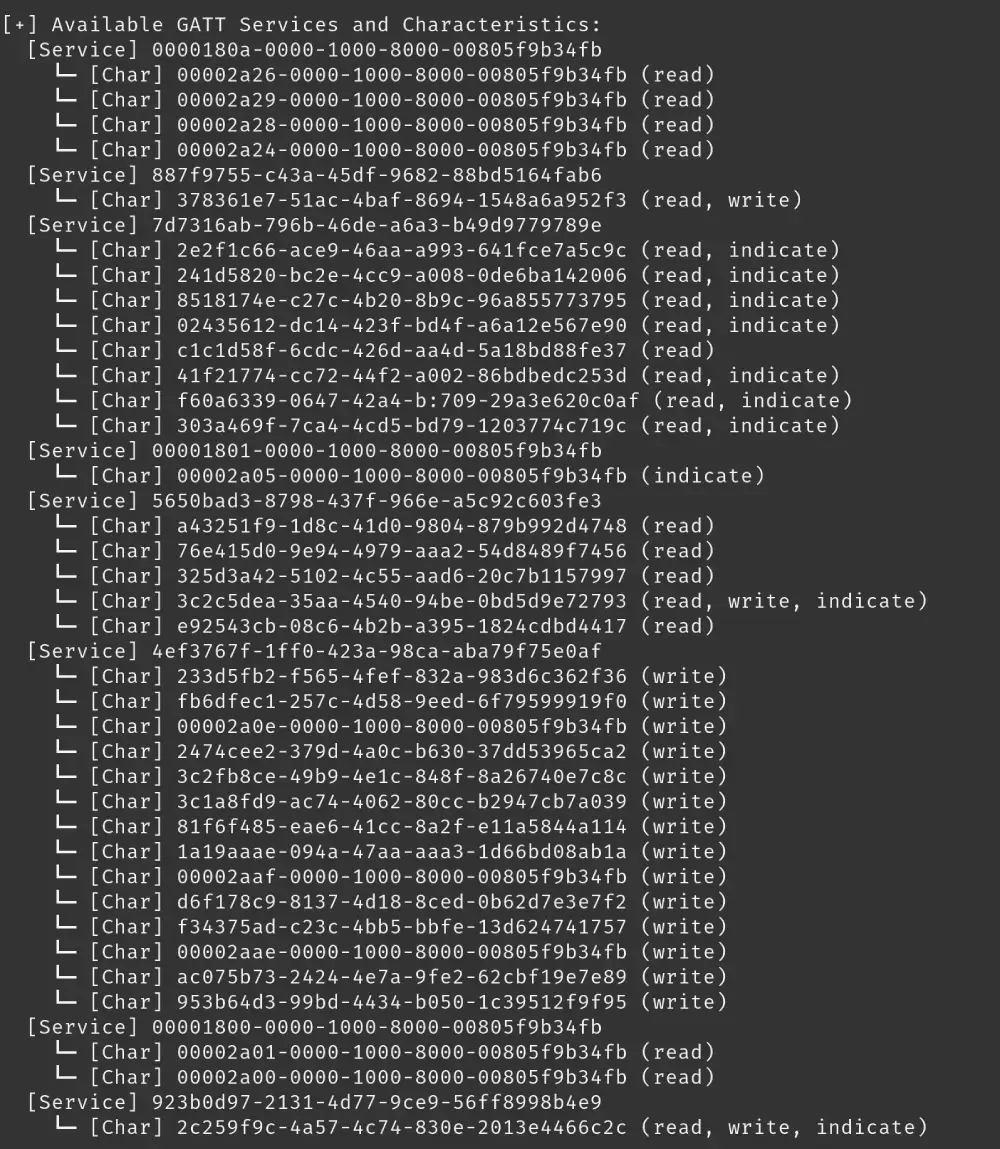

After some trial and error, we discovered that in order to expose the additional GATT characteristics and services we would have to put the device into a factory reset mode. In this state all the GATT characteristics that were listed in the APK were visible and could be interacted with. The challenge for us with this requirement was that you would need physical access to insert a small paperclip and hold down a button for 10 seconds, at which point the attack seemed pointless.
This brings us back to the previously mentioned reset modes we discovered through fuzzing: the second of which was the “Hard Reset”, this is where things got interesting. When we first ran the full reset command we didn't notice much of a difference compared to the "Soft Reset". The device went offline, but when we tried to scan for any other characteristics there were none to be found.
After doing a little more research into BLE and how connections work we came to the conclusion that after issuing the "Full Reset" command, we would have to disconnect and reconnect our session. Once reconnected to the device after sending the "Full Reset" command we discovered that all of the device's GATT characteristics were active and available. These newly exposed characteristics opened the door for several attacks which we will explore throughout the rest of the article.
Our theory was that we may have two different attack scenarios that could be exploited based on the information exposed by these GATT characteristics.
The first attack was a Denial Of Service which revolved around the device registration process, specifically how devices could be re-registered after they were already bound to an account.
The second attack could be used to interrupt and replace the camera feed of a device by exploiting how the device authenticated with the TUTK P2P network in order to stream video to the mobile application.
Both of these attack chains required the following information from the victim device in order work:
1. AccountID
2. DeviceID
3. Device Token
The second attack, in addition to the other three variables, also required the victim's P2P UUID which connected their device to the TUTK network.

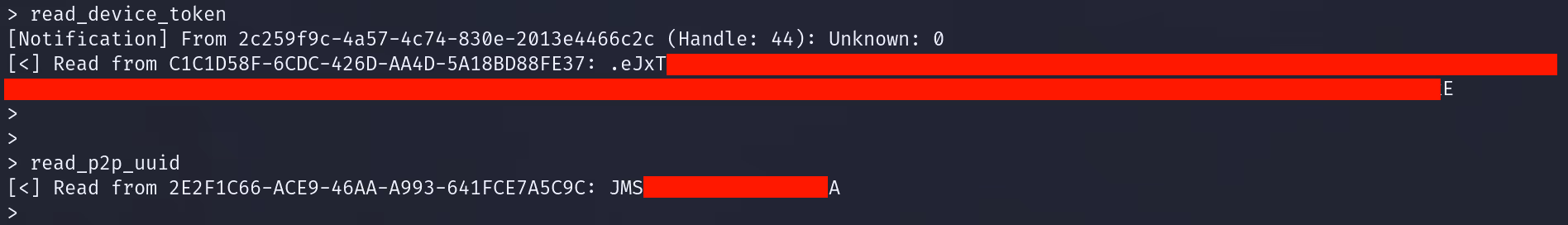

The characteristic C1C1D58F-6CDC-426D-AA4D-5A18BD88FE37 could be used to read the device token and 2E2F1C66-ACE9-46AA-A993-641FCE7A5C9C allowed us to read the P2P UUID the device was using in order to stream video over the TUTK network.
Using these 2 exposed GATT characteristics, we were able to retrieve two out of the four victim details required to complete the attack chain. Now all that was left was to retrieve the AccountID and DeviceID.
The AccountID and DeviceID would prove slightly more challenging to retrieve. We knew that the Firehose logging service, which we had decrypted in Part 1 of our blog series, contained these IDs, however up until this point we had only seen it run after a device was first connected to an account. We didn't like the restrictions this put on our attack chain, so we needed to uncover a way to control the Firehose.
After much testing and log review, we discovered that there were other conditions that could trigger the service to run. If the device was disconnected from the Internet for more than three minutes the Firehose service would collect the data and attempt to send it off once re-connected.
This was something we could control using some of the other newly exposed GATT characteristics.
The following GATT characteristics were exposed after the device was put into "Full Reset" mode which we could use in order to control the device's internet connection:
The scenario was fairly simple: if we were within range of the device we could disconnect it from its network, force it to connect to our own access point (while it was not connected to the internet), and then, after allowing for the three minute delay, reconnect it and proxy the traffic through certmitm. The end result was that the Firehose service would run and we'd decrypt the TLS traffic containing the AccountID and DeviceID.
The complete attack chain, using the Furbonator script:
With these details we were now ready to attempt our first attack: re-registering the victim's device to our account.
By combining the previous DeviceID Spoofing attack with the leaked AccountID, DeviceID, and Device Token an attacker can now re-register a victim's device, completely disabling it and preventing it from ever being registered again.
Once the setup is completed the attacker should now have the victim's device added to their account.
As their DeviceID is now associated with the attacker's account, and they cannot get the DeviceToken, the victim will be unable to re-register their device to their own account. As a result, they will have lost all functionality of their Furbo device, essentially bricking it.
Building off of the DoS re-registration attack we could take this one step further. We could use the P2P UUID grabbed from BLE to interrupt the victim's video stream and replace it with the attacker's own stream. This is possible by abusing the P2P authentication flow in order to re-issue credentials for the spoofed UUID, authorizing the attacker device to stream on the TUTK network and replacing the victim's video stream with their own.
In order to stream on the TUTK network each device requires P2P UUID. When a device is registered to your account you are also authorizing the mobile account to request the video stream from that particular P2P UUID.
When the device is paired and registered, the mobile application retrieves a P2PAccountID, P2PAuthKey, and P2PPassword from an API—which are the values we retrieved from the device's memory in Part 2. These details are then passed to the device, from which it is sent back to the Furbo servers to retrieve a P2P UUID.
This P2P UUID is bound to the DeviceID; even when a device is reset the DeviceID stays the same, meaning that when it reconnects it will maintain the same P2P UUID.
However, having the P2P UUID is not enough to stream on the TUTK network. You also require an Authkey and Password. However, these credentials can automatically be generated and reissued to a device as long as it has a valid AccountID, DeviceID, DeviceToken, and P2P UUID which in our case we do.
Once the attacker's device reboots it will check to see if that p2p_auth.json file is located on the device, it will then reach out to Furbo's servers in order to retrieve the details. As all the details on the attacker's device are the same as the victim's device, Furbo will generate new credentials for the victims P2P UUID, invalidating their own. As a result, the attacker's device is the only valid “online” device for that P2P UUID. When the victim opens their mobile application, they will see the attacker's video stream and not their own as that is what will be returned when the application searches for that P2P UUID on the TUTK network.
That concludes Part 5 of the Hacking Furbo blog series. BLE is an often overlooked communication protocol, one we nearly overlooked ourselves. However, as we have shown, it can yield very interesting results when it is interrogated effectively. We were able to build attack chains based on data garnered through BLE to take over the device’s video streams and gain unauthorized access to someone’s Wi-Fi network, serious stuff. The next part will be the grand finale! We will finish off with a review of the filesystem where we found numerous vulnerabilities including one which allowed us to view the activity of every Furbo worldwide.
